ARCA: The Processor that came from the East

Arca-1 Rev2 166Mhz - Late 2001

Arca-1 Rev2 166Mhz Processor – Late 2001

China is generally seen as where devices are made or assembled, rather then where they are designed or invented, certainly in the computer world.  In 2001 a Chinese Gov’t funded venture known as ARCA Technologies changed that.  ARCA (Advanced RISC Computer Architecture) designed and released a completely new processor known as the Arca-1.  At the time there were two design houses working to create China’s first CPU. Arca, and BLX.  BLX made the Godson series of processors which are MIPS32 and MIPS64 implementations.  Arca, took a different approach.  Not only did they seek to make an indigenous design, but they wanted to do so with their own Instruction Set Architecture (ISA).

The ArcaISA is, of course, RISC based, it contains 80 instructions, with each instruction consisting of up to 3 operands, and contains 32 general purpose registers.  The original Arca-1 design is made on a 0.25 micron process (by which foundry is unclear, BLX used ST) with a 5-stage pipeline and drawing 1.2W at a clock speed of 166MHz.  It contained separate 32 way associative 8K caches for Instruction and Data.  The Arca also includes a DSP unit that has a pair of multiply/Accumulate Units (MACs) as well as basic SIMD support for media acceleration (including hardware MPEG2).   Not exactly impressive for 2001, but not bad for a first release.  However there was more to come.

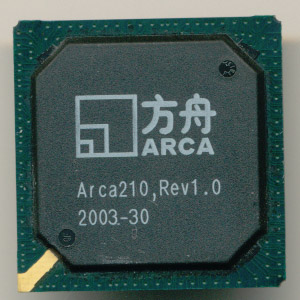

Arca-2 Rev1 Up to 400MHz - 2003 Produciton

Arca-2 Rev1 Up to 400MHz – 2003 Production

In December 2002 the Arca-2 was released.  This was a refinement and process shrink to 0.18u.  Die size was a mere 5mm2 and clock speed benefited greatly from the smaller process node (as well as a refined core).  Clock speed rose to 400MHz.  Instruction and Data caches remained at 8K and the 5-stage pipeline was kept.  Power consumption was around 400mW, this put the Arca-2 in good competition for other embedded processors.  In February 2004 Wyse announced they were going to make a model of their Winterm 1000 series powered by an Arca-2 running at 350MHz.  This was a slot previously dominated by the AMD Geode Processor so would be a huge win for Arca.  It is not clear if Wyse actually went through with the design however.  I have not seen any Winterm 1000 series specs, documentation or devices that actually used the Arca, but it is possible they were used in the Chinese market.  Both the WT1200 and 1125 continued to use Geode processors.

By 2004 Arca was developing a faster processor know as the Arca-3.  This was to be made on 0.18u and be clocked at up to 600MHz.  In order to reach these speeds the pipeline was extended to 7 stages from 5 and branch prediction was added to help offset the branch penalties from the longer pipeline.  Instruction and Data caches were double to 16K each.

Around 2006, the Arca-3 was still languishing in development and Arca began to languish in scandals of bribery, and corruption.  A DSP designed by Arca (the Hanxin) turned out to be a  remarked Motorola DSP56800 processor and funds that should have went to processor development were allegedly used to purchase a new building.  In 2006 Arca purchased a license to the ARM926EJ-S core, effectively giving up on the original Arca architecture.  The processors and SoCs using the Arca cores continued to be used in the domestic market, but never in the quantity that Arca, and perhaps the world, anticipated.  Today Arca is a design house that makes SoCs based on the ARM and MIPS architectures.  The idea of a Chinese IC industry lives on, but it is one based on existing architectures.
