CPU of the Day: MicroModule Systems Pentium Gemini

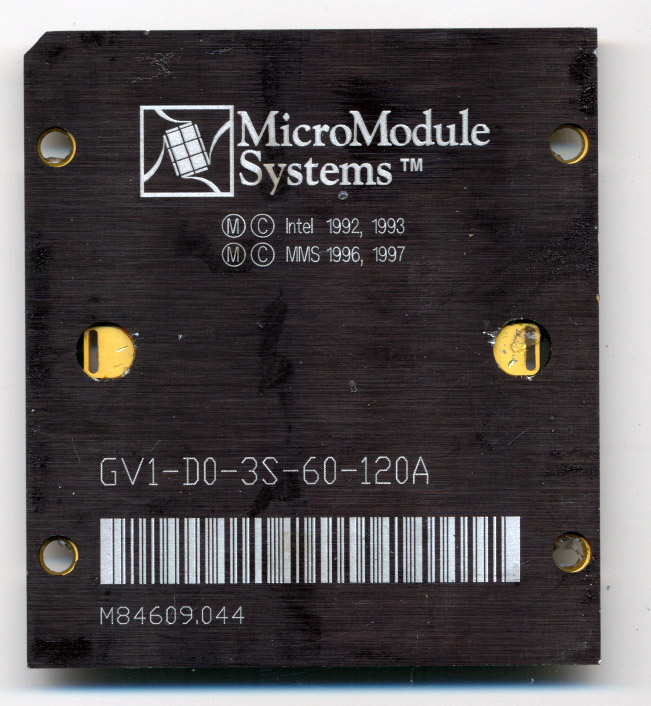

MicroModule Systems GV1-D0-3S-60-120A 120MHz (top side)

MicroModule Systems (MMS) began operations in 1992, following the completion of an agreement to acquire the assets and license rights to the technology of Digital Equipment Corporation’s MCM (Multi-chip Module) engineering and manufacturing business in Cupertino, California. The MicroModule Systems vision was to lead the next wave of electronic integration technology. Previous waves have been: discrete components (1950s), integrated circuits (1960s), large-scale integration (1980s), and system on a chip (mid 1990s).

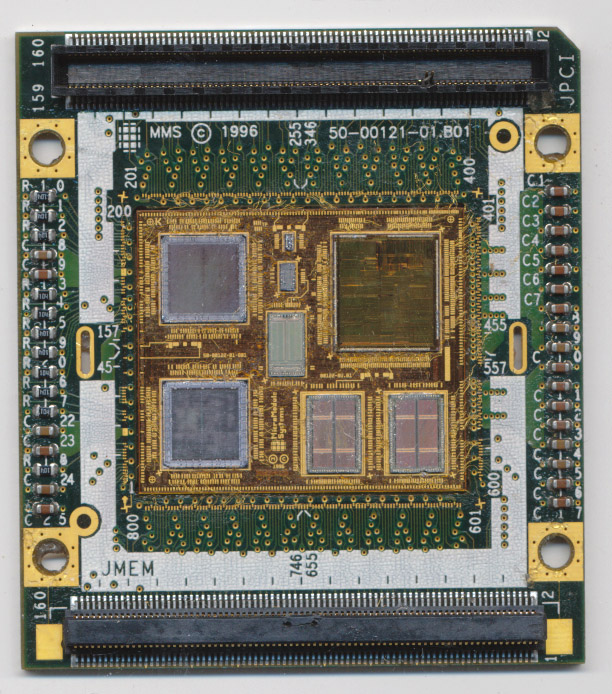

The MMS Gemini was a module, that includes the National Semiconductor chipset die (x2) , a P54CSLM Pentium die, tag RAM, and cache RAM (128Kx2) as well as an LM75A temperature sensor for thermal management.   MMS used Intel D0 revision P54 processors (with the exception of some early C0 die), a stepping Intel never packaged themselves (it was solely used for the ‘known good die’ program).  When Intel discontinued selling fully tested dies, MMS had no way to build the Gemini and later MMX modules, so in 1998 went out of business. The Gemini was used in many mobile, and rugged PC applications such as the Motorola MW520 Computer used in many police cars.

MMS also produced MCM modules for ROSS, used to make the HyperSPARC processor as well as the Intel Pentium Pro 1MB MCM.   For a company that was only in existence for 6 years, their impact was tremendous. MMS was not alone in their production of Intel Pentium Processor modules…

Fujitsu also made modules using Intel dies.  These were again used in rugged PC applications, laptops, and industrial computers.

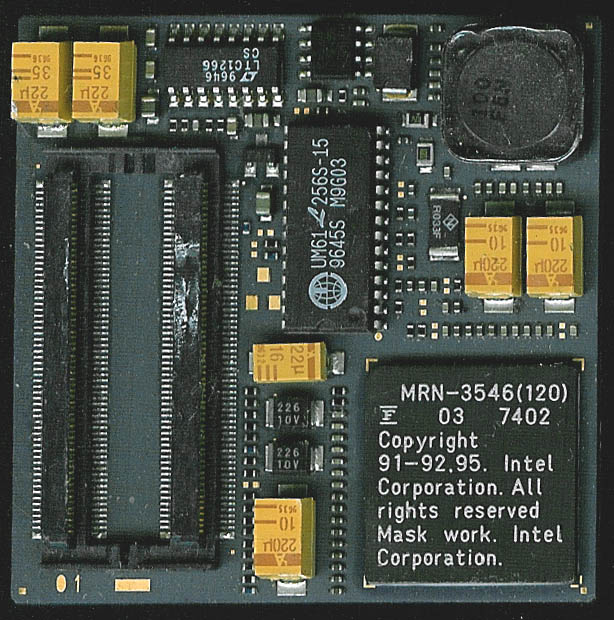

Fujitsu MRN-3546 120MHz

Fujitsu made 100, 120, 133, and MMX processors on a MCM type package where the individual components are bonded/soldered to a ceramic substrate (rather then the PC Board)
