MC680x/MCS650x Test Boards For Sale

680x/650x Complete Test System

680x/650x Complete Test System

Both the Motorola MC6800 and MOS MCS6502 (which had a very similar design) have spawned many dozens of additional processors/microcontrollers that differ in pin out, features, process (CMOS/NMOS) speed, on board memory and other things, yet retain the same basic 6800 or 6502 architecture.  Thus it made sense to make a single test system to handle as many of these CPU/MCU’s as possible.

This is made possible in a way similar to the MCS-80 test systems that allowed expansions for the Z80/NSC800 and 8085.  The 680x/650x board uses expansion boards, as well as a new feature called the PCP (Pin Configuration Panel).  The PCP handles differences in pin-puts for the various chips to be tested and configures the base system to know which chip is being used.  The expansions boards handle anything else, as well as providing LEDs for additional testing of some chips.

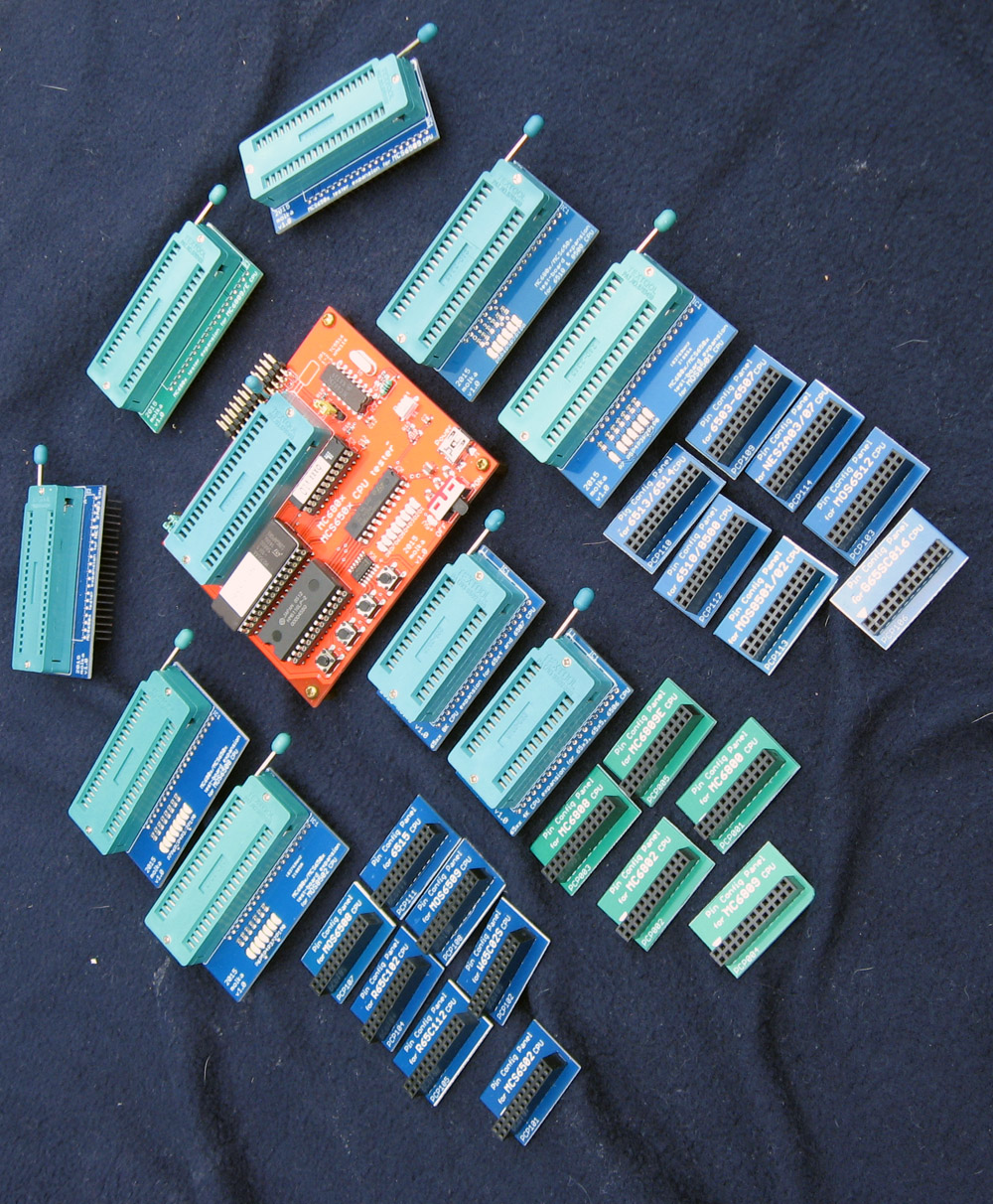

A complete 680x/650x Test system includes the base system board, 10 PCP’s and 10 different expansions.

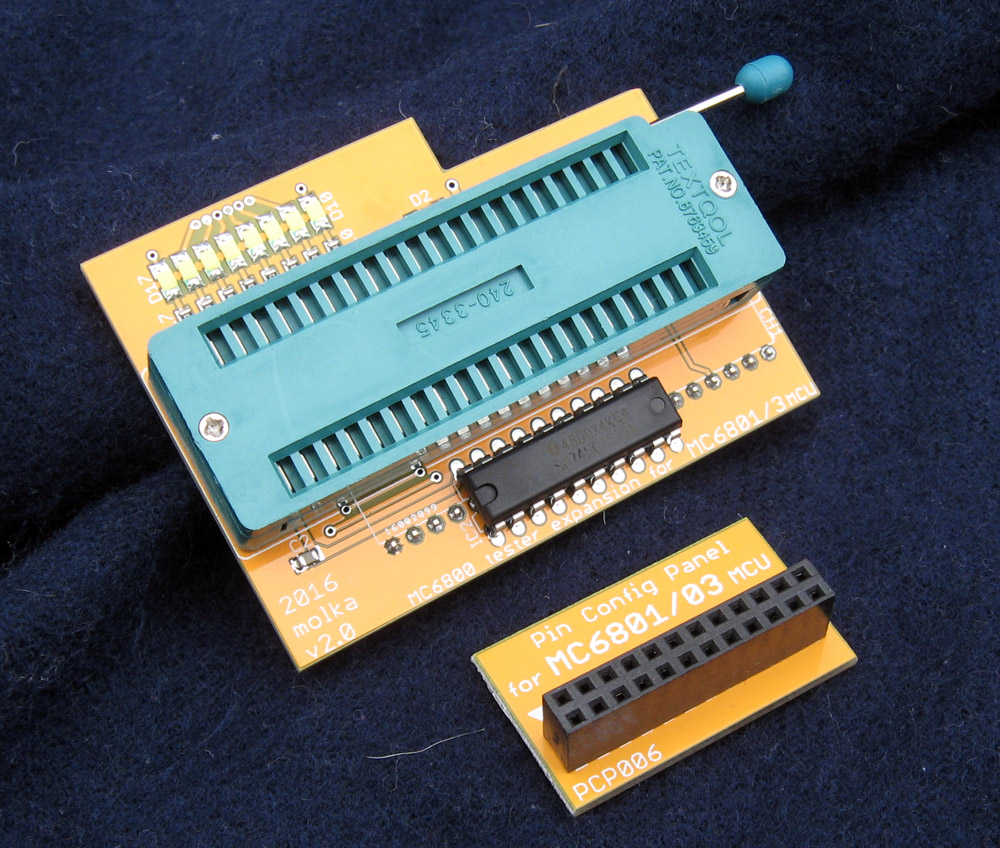

6801/6803 Expansion Board and PCP

Now included is an expansion for Motorola/Hitachi/Fujitsu and other 6801 and 6803 MCU’s as well as updated firmware to support testing these.

This allows the system to test the following IC’s:

6800 Family
(NMOS, any speed/manuf.)
6502 Family
(any manufacture/speed)
6800
6801
6803
6802
6808
6809/E
6502/65C02 NMOS/CMOS
65C02S
6503/04/05/06/07/08/09
6510 (as used in Commodores)
6512/65SC12
6513/14/15
65C102/65SC102
65C112/65SC112
65SC802
65C816/65SC816
8500/8501/7501 (as used by Commodore)
Ricoh 2A03/2A07 Nintendo CPU

That covers over 30 difference CPUs/MCUs on a single system.  Future expansions are of course possible, with support for more Motorola MCUs such as the 6805 family in planning.

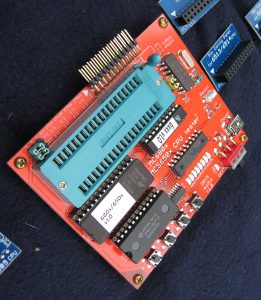

680x/650x Base Board

680x/650x Base Board

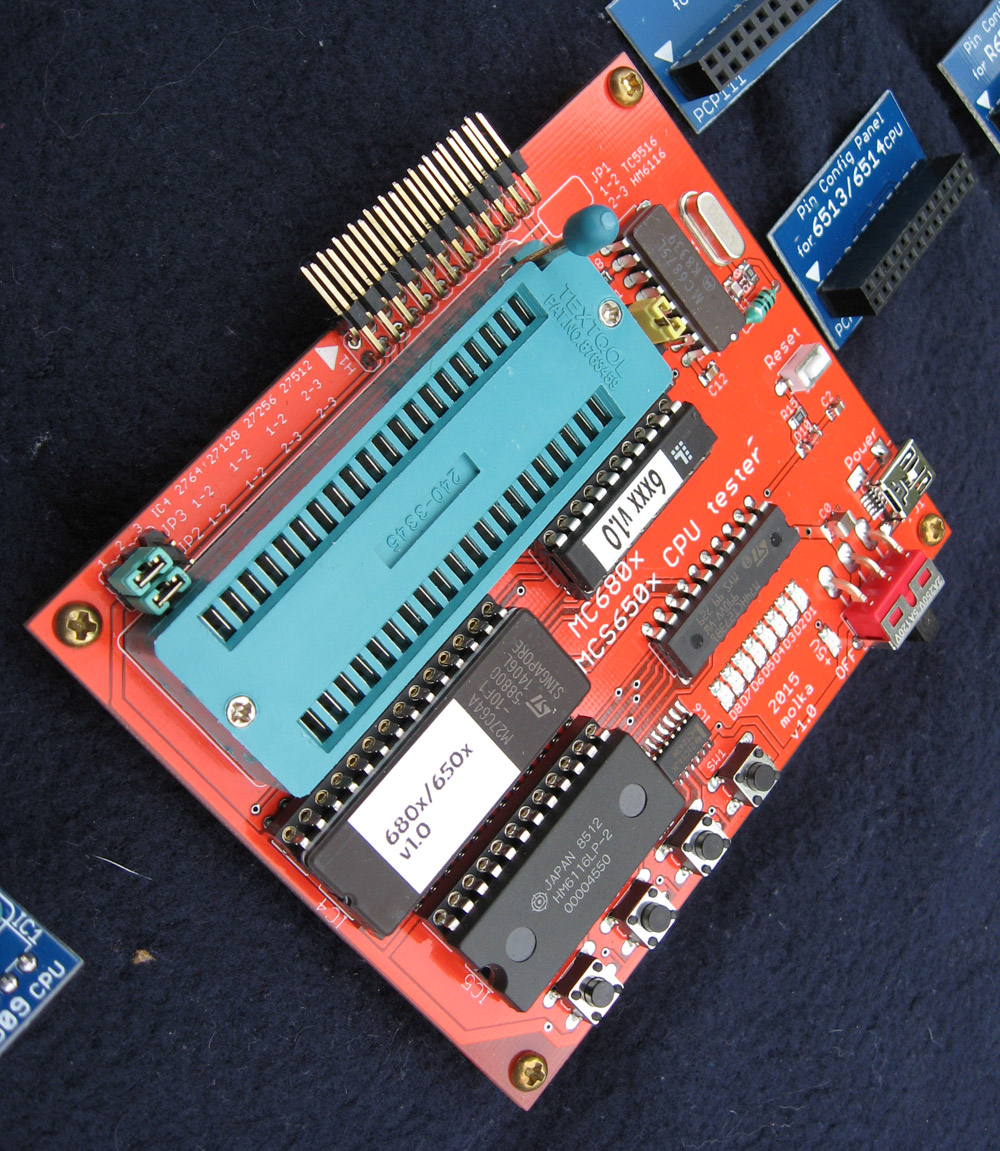

The board consists of the base components of a MC680x/MCS650x system:
• 40-pin ZIF socket – for the tested CPU – provides easy replacement of the CPUs.
• Clock generator with 4MHz crystal oscillator for generating 1, 2 or 4MHz system clock of the CPU.
• 2K x 8bit (HM6116/TC5516) static RAM for variable and stack area.
• 8K x 8bit (D2764) EPROM holds the test programs. This program supports 4 push buttons as inputs, and 8 LEDs, as output devices. It also provides basic and special feature test routines.
• 24-pin header provides facility to configure the different function pins of different CPU/MCU types.

The board requires a single +5V power supply (200mA) provided through a mini-USB connector.
There is a power switch and power indicator LED in the upper left corner of the test board.

The complete system, with all expansions and PCPs for testing 35+ chips is available for $299.99 with FREE shipping. (that works out to less then $10/CPU type for testing.)




Also available is a basic testing system, which includes only the base PCPs (9 of them) and no expansions.  This still allows testing of many processors including some of the most common

This allows the system to test the following IC’s:

6800 Family
(NMOS, any speed/manufacturer)
6502 Family
(any manufacture/speed)
6800
6802
6808
6502/65C02 NMOS/CMOS
65C02S
6512/65SC12
65C102/65SC102
65C112/65SC112
65SC802
65C816/65SC816

This covers nearly half as much as the full system, but since their are no expansions included, at a much lower cost.  Obviously if you need an expansion later it can be purchased.

The basic system is available for $134.99




The user manual may be downloaded here (PDF)
