In 1972 HP introduced the HP 3000 line of minicomputers. Mini of course meaning they didn’t take up the entire room. They competed against the likes of the DEC PDP-11 and the TI-990. Original called the System/3000 (apparently to compare favorably to the IBM System/360) they were renamed the HP 3000. These were 16-bit computers employing a stack based design, They had no general purpose registers, all operations operated directly on one of several stacks. The first models were designed using bipolar discrete logic and ROM for the microcoding. This allowed for good performance but was expensive and large. Just the processor for the high end Series III of 1978 was 9 boards.
The Series 33 (and the smaller series 30) were to be cost reduced versions, to slot in between the high end Series III and the newly introduced HP 300 microcomputer. In order to do this those 9 boards for the processor needed to be greatly simplified. HP engineers decided to use a processor they had already, the CPU from the HP 300 Amigo. The HP Amigo was a bit of a disaster for HP, after 5 years of development, including
designing an entirely new processor it was a failure in the market, suffering from management and politics more then from a technical standpoint (it was not file system compatible with the 3000 line and that caused some concerns). After being released in 1978 it made only around $15 million in sales and was canceled after a short time.
Part of that 5 year development was for its 16-bit VLSI processor. In order to get the speed needed for the HP 300 and at a low price, the pressor needed to be a VLSI design (a few chips rather then a few boards). In order to fit in a smaller pedestal cabinet it needed to energy efficient and heat efficient as well. HP’s engineers decided to use a Silicon On Sapphire (SoS) CMOS design, a process HP had some great experience with in the MC2 processor. SoS is a form of Silicon on Insulator, a manufacturing method that is very common in today’s IC’s (using Silicon Dioxide). Instead of an IC being made on a pure silicon wafer, the silicon is deposited on a wafer of sapphire. Sapphire is an excellent insulator which wels reduce leakage currents, as well as spurious currents from such things as radiation. Radiation tolerance is perhaps what SoS became known for most, but its low power performance was what HP was after in the 1970’s.

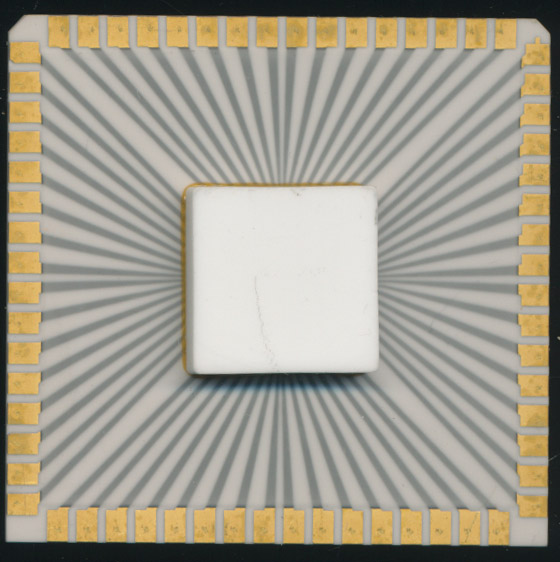

The processor for the HP 300 was designed into 3 separate IC’s, totaling 20,000 transistors (some documentation says 25,000) and running at a clock of 11MHz. The processor control unit (PCU 1AB2-6003) chip generates microinstruction addresses that control the other two chips: the register, address, skip, and special (RASS 1AB3-6003) chip and the register, arithmetic, and logic unit (RALU 1AB4-6003) chip.

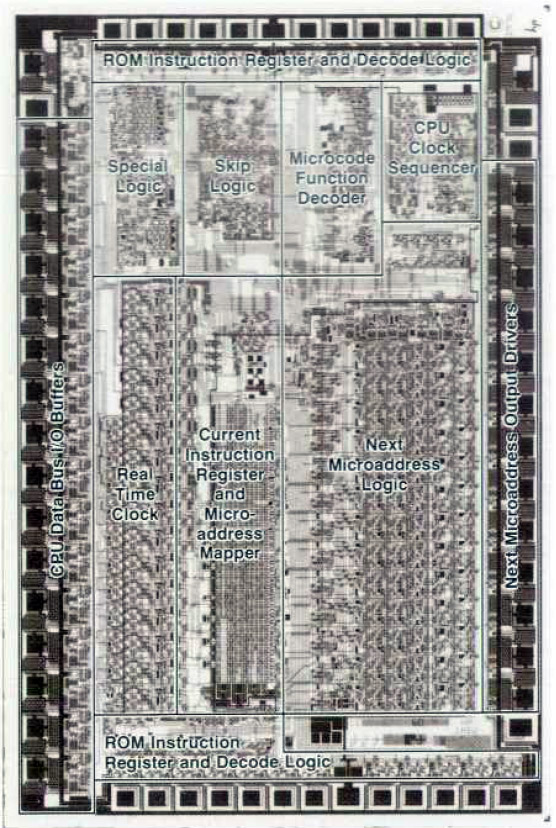

The PCU contains 5000 transistors and handles the microsequencing, clock generation, and a sub-routine save stack. Clock generation is interesting as its single phase, and variable. The PCU can lengthen or shorten the clock period as needed. If a memory operation needs longer to complete the PCU simply holds the lock period longer. Data path functions are handled by the RASS and RALU chips. The RASS contains about 7000 transistors and contains a register file for the second operand to the RALU as well as address generation and skip logic. The largest of the chips is the RALU. It handles all of the standard ALU functions as well as hardware multiply/divide. It also contains 16 registers: 8 general purpose registers, and 8 for address storage. Together these three chips form the CPU of the HP 300 and consume only 1Watt of power. The processor is a microcoded design so the actually instruction set resides in ROM, in this case on a separate board. In the case of the HP 300 this also allowed the I/O processor duties to be microcoded into the general processor, eliminating another subsystem.
When HP designed the 3000 series 30 using the processor from the HP 300 they had to make it compatible with previous HP 3000s and the HP MPE OS they ran. This entailed breaking down the MPE OS into 2 parts, those that were entirely software dependant, and those that were hardware dependant, and then writing the microcode to handle the hardware dependent part of the OS. Like the HP 300, the HP 3000 architecture is stack based, with the PCU chip holding 2 Top of Stack registers for fast access to the (off chip) stacks. The Series 30/33 have a total of 214 instructions while the HP 300 uses just under 200 instructions. Instructions are 32 bits long and typically
The exact same ICs are used for the HP 300 as for the Series 30/33 with ‘one pin of each chip tied to a different voltage level.’ Exactly what pin that is and what voltage is not said. Looking at the handdrawn schematic of the Series 33 does show the /DIS pin pulled high (12V) on both the RALU/RASS chips, though what that pin is for is unknown.
The HP 3000 line continued to evolve, moving to ECL and CMOS gate arrays in the mid-80’s. In the late 80’s HP introduced a new 32-bit architecture for the the 3000 line, the PA-RISC. The PA-RISC continued to evolve through the 1990’s until it was replaced by the Itanium. The HP 3000 line continued to be supported by HP until 2010, making it the longest run of any minicomputer. Even today the HP 3000 is supported by a third party (Stromasys) who makes an emulator allowing native MPE programs to run on a modern Intel processor.
Today HP is known mainly for their printers, and PC’s but they were on the forefront of chip design for decades, not only building computers, but building the processors to run them. They are lesser known as their processors were not designed for general sale, but for their own use, from calculators, to logic analyzers, to minicomputers and printers, HP designed and fab’d dozens of processors.
