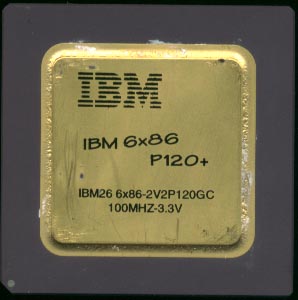

6x86 > IBM6x86P120
Modified: May 28, 2005, 1:12 am
Manufacturer:IBM
Model:6x86-2V2P120GC
Speed:100Mhz
Type:6x86
Data Code:??
Introduced:1995
Transistors:3 Million
Package:296 CPGA w/ Integrated Heatspreader
Process:0.65 Micron 5 Layer
Architecture:32 bit CISC (RISC influenced)
Used in:Computers
Description:Cyrix entered the fifth generation processor
market with the 6x86 processor, formerly
projected as the M1. As a successful and cheaper
(often less than half the cost) alternative to
the Intel Pentium, it is pin- and voltage-
compatible with it. Cyrix gave it the 6x86 name
in reference to some of its more advanced
features, which it calls "sixth generation". In
reality, the processor is comparable in power and
architecture to the fifth-generation Pentium.

The 6x86 is extensively RISC influenced with
such design features as register renaming,
out-of-oreder execution and the like. The Cyrix
6x86 was a faster and better design then the Intel
Pentium. Its only weakness was its FPU which
was on the slow side.

As a fabless company Cyrix had other companies
produce their chips, often part of the agreement
was that these foundries could sell their own
version of the chip. (such as IBM and ST)

CISC, In-/Out-of-order and
Dual Pipelined Execution
Pipeline Depth: 1 (Shared) plus
2x 4+2 In-/Out-of-order (Dual Pipeline) Stages,
4x FP plus 4x FP Store Queue
Instruction Decoder: 2x IA-32/Cycle
Execution Units: 2x Integer, Non-pipelined FPU
Execution Speed: Up to 2x IA-32/Cycle
-----------------------------------------
The Cyrix design was used by:
IBM
ST Micro
National Semiconductor
--------------------------
Actual Speed: 100
Bus Speed: 50
Multiplier: 2
Fab'd By: IBM
----------------------------
