29K > AMDAm29240B5-ENGGSAMPLE
Comments
CPU Shack  - March 9, 2005, 4:47 pm
Manufacturer:AMD
Model:AM29240B5
Speed:20MHz
Type:29000
Data Code:9509
Introduced:1993
Transistors:??
Package:96PQFP
Process:??
Architecture:32 bit
Used in:Printers, SCSI Cards, Control Apps
Description:.
AMD also made many Microcontrollers based on the
29K design, they very widely in what features
(and to what extent) they provide. However, as
with all microcontrollers they include I/O
control, ROM control and about everything needed
to interface to a system. As a system designer
this gives you the ability to choose the features
you need while still conserving pin counts and
power dissipation.

The 29240 has 4K cache, an ALU and MMU. It is the
high performance line of the 29k MCUs.

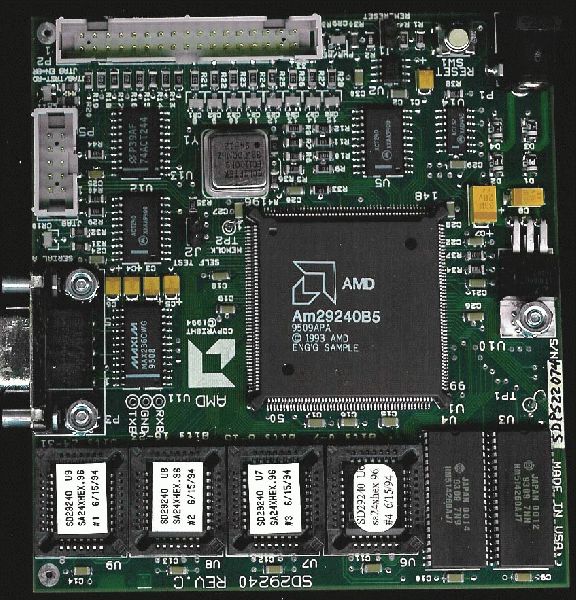

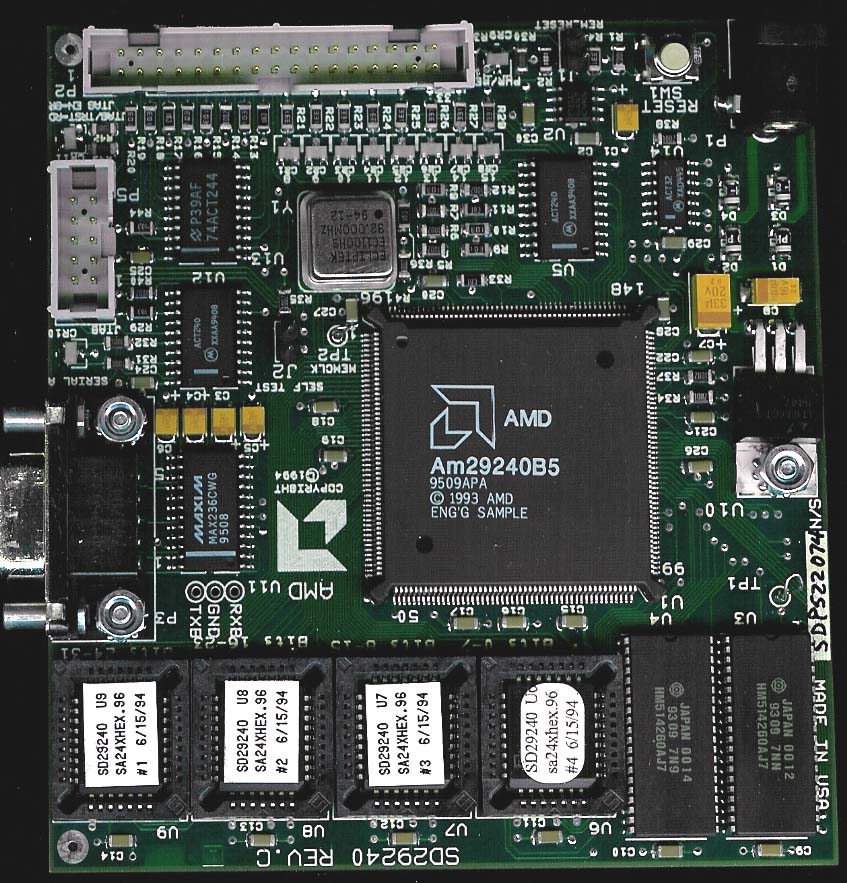

This chip is on an AMD Devboard and is also an engineering sample.
