The e2v PowerPC and HiTCE Packages

Atmel PC7410MGH450LE - Motorola Marked Package

Atmel PC7410MGH450LE – Motorola Marked Package – 2003

In the 1970’s second sources were quite important in the processor industry.  They provided a stable supply of a designed in part if the primary manufacturer (which often only had a fab or 2) had problems.  They also could widen the market for the processor.  Many of these agreements were kept active for decades after, resulting in some interesting results.

Motorola licensed many of their design to SGS, which later merged with Thomson to become STMicroelectronics. though the Thomson name was still used.  Thomson license built most of Motorola’s product line, as well as many high reliability versions.  In 1999 Atmel bought Thomson-CSF Semiconductors, and continued to make Motorola products (in their Grenoble France fab), which now included Motorola’s PowerPC line as well as the 68k line of processors.  This portion of Atmel was sold to e2v (in England) in 2006, which continued to produce the Motorola (now spun off as Freescale) PowerPC line, now branded as e2V.

The packaging used by e2v (and previously Atmel) is the same as that used by Motorola/Freescale.  The packages were custom made for Motorola/Freescale by Kyocera (and others) and so often chips with both Atmel/Motorola and e2v/Freescale markings can be found.  It is this packaging that is of interest, as it shows an interesting aspect of processor design.

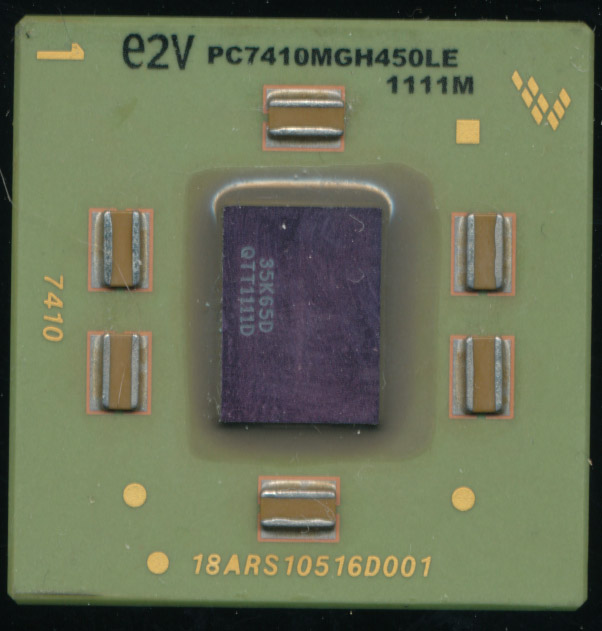

e2v PC7410MGH450LE - Freescale Marked Package

e2v PC7410MGH450LE – Freescale Marked Package – 2011

The pictured PowerPC 7410 processors are packaged in a HiTCE package.  HiTCE is a package designed to have a higher Thermal Coefficient of Expansion then the standard Alumina ceramic packages, meaning that when heated it expands more.  TCE is measured in ppm (parts per million) per degree Kelvin. Typical alumina ceramic packages have a TCE of 7 and this is where problems arise, especially in high reliability applications and wide temperature ratings.  This PowerPC 7410 is spec’d for a military temperature range of -55C-125C, which is a 180C temperature swing.  Part of the rating is: will the processor perform to spec over that range of temperature, will it meet all the values specified in the datasheet, timings, voltages, current, etc. and will package itself handle those temperatures without failing.  There is, however, another consideration, What is that processor mounted to?

Typically its soldered (its a BGA device0 onto an organic PCB called FR-4.  This is where the problem shows up, FR-4 PCB also has a rated TCE, but in this case its around 12-14, it expands significantly more then a ceramic chip.  Its this difference that causes problems.  On a larger chip, over a wide temperature range this can cause mechanical failure, shear stress on the balls will break them free, with obviously bad results.  Worst case, 180C temperature swing, from 7-14 TCE results in a difference of 1260 ppm (aprox 0.13%).  On through hole devices (such as a DIP) the long leads can take this difference, there is plenty of room to flex without breaking.  IBM uses CGA (column grid array) to essentially elongate the balls of a BGA device to allow more deflection before failure.  Other companies use double BGA (with 2 balls stacked to do the same thing).  Organic packages can of course be used as well, but they do not have the mechanical reliability, or thermal characteristics as ceramics.  Ceramic boards can be used as well, but that is very expensive to do.

Thus the invention of HiTCE packages, which are a way for ceramics to be made with a higher TCE, that is much closer to that of the PCB they are mounted to, this largely solves the expansion mismatch, while keeping all the benefits of a ceramic package.  The e2v HiTCE package has a TCE of 12.3, which is right in the range of most PCBs, allowing a BGA device to be used in a high reliability application, without fear of failure.
